Fluke 52120A Transconductance Amplifier
Fluke 52120A Transconductance Amplifier - Image 2
Fluke 52120A Transconductance Amplifier - Image 3

Fluke 52120A Transconductance Amplifier

RM0.00

Key features

  • Supply DC current up to 100 amps and AC current up to 120 amps, with accuracies to 140 ppm.
  • Generate 3,000 or 6,000 amps using accessory coils, up to 360 amps with three 52120As are connected in parallel.
  • Frequency: DC to 10 kHz, a burden voltage (compliance): 4.5 V @ 120 A, inductive drive capability: 1 mH load.
  • Allows for parallel operation with 2 or 3 amplifiers up to 360 A in a single phase, or up to 10 amplifiers and 1200 A in standalone mode.
  • GPIB remote operation
Request for Price
Category: Tag: Brand: Product ID: 8024

Description

Product overview: 52120A Transconductance Amplifier

The 52120A is designed for users whose ability to address their calibration workload may be
limited by the output current, accuracy and drive capability of their present test equipment,
including:

  • Calibration professionals in a calibration/standards lab or an electrical utility
  • Manufacturers of power/energy instrumentation and meters, power quality analyzers or power converters
  • Users of electrical test and measurement equipment

The 52120A operates as a transconductance amplifier with:

  • 5522A/5502A/5520A/5500A Multi-Product Calibrators
  • 5730A*/5700A/5720A Multifunction Calibrator
  • 6105A*/6100B* Electrical Power Standard
  • 5080A Multi-Product Calibrator
  • 9100 Universal Calibration System
  • Any calibrator, signal generator or power supply capable of sourcing 2 V or 200 mA, dc or ac

*Special closed-loop operating mode

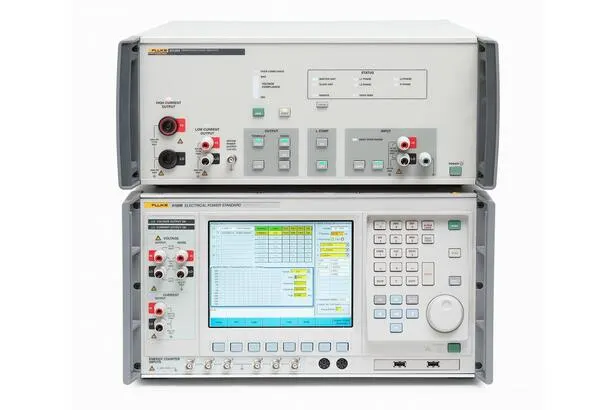

You may also operate your 52120A in closed-loop mode, seamlessly communicating with your Fluke Calibration 6105A or 6100B Electrical Power Standard to deliver enhanced 52120A accuracy.
