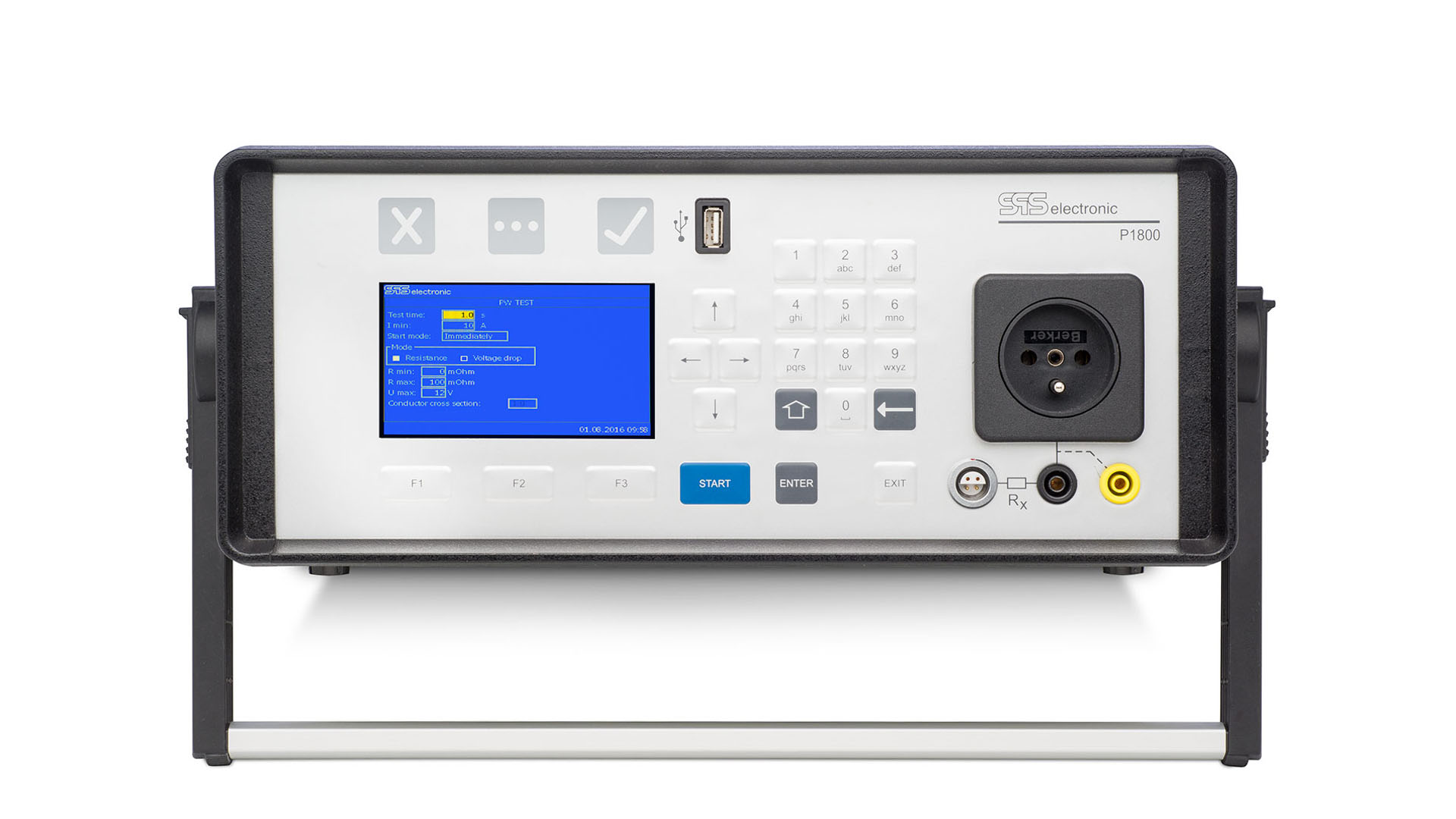

SPS Ground bond tester P 1800D

RM0.00

P 1800D

  • Desktop device 14″ / 3 HU
  • Ground bond test AC: 10 – 30 A / 0 – 400 mΩ
  • Ground bond test / open-circuit voltage: 6 V or 12 V
  • Protective conductor test / measuring method: 4-wire technology
  • Continuity test / test voltage DC: 24 V
  • Continuity test / measuring range: 0 – 600 mA
  • Wide-range power supply unit: 90 to 253 V, 50 Hz / 60 Hz
Request for Price
Category: Brand: Product ID: 8656

Description

The P 1800D ground bond tester combines ground bond and continuity testing in a single device. The P 1800D is ideal for fast, cost-effective and convenient safety testing in accordance with the current national and international standards (IEC, EN, UL, VDE etc.).

The P 1800D offers maximum convenience and ease of use thanks to the integrated 4.3″ TFT color display. Thanks to the individually configurable test programs, a fully automatic test plan can also be created for each product. The device is suitable for end-of-line tests as well as for preliminary tests. It also has a fully electronic generator that ensures accurate and fast testing.
